綜述

Summary

型臥式擴口機是關閉程序輪子輪輞擴口的公共傳奇裝備。超聲波焊接機可分為設備主機、夜壓清潔能源裝置、電箱兩大小面積的，其規劃規劃簡化公平、對一般的中性能好，可在輪輞加工制作中，一遍性構建擴口責任。其責任負擔、責任傳輸率、路線規模較等可以新工藝需用關閉程序調理身體。具有手動操作時和活躍二者掌管體例。The horizontal flaring machine is a special equipment for flaring wheel rims. The machine includes host device, hydraulic system and electric control system, which features simple and reasonable layout, good performance for centering, one-time flaring task can be processed. Its working pressure, working speed and stroke range can be adjusted according to the needs of the process technology. It can be operated by manual mode and automatic mode.

技術因素因素

Specification

裝備型號	Model Number	KKJ-300-AH
輪輞最大寬度	Max. Width of Rim Band	320mm
輪輞最大直徑	Max. Diameter of Rim Band	18 inches
輪輞最小直徑	Mini. Diameter of Rim Band	12 inches
輪輞最大厚度	Max. Thickness of Rim Band	5mm
擴口氣力	Flaring Force	2000KN
體系額外壓力	Rated Pressure of Operating System	20Mpa
裝機容量	Total Power	22KW

法寶規劃簡紹

Structure Description

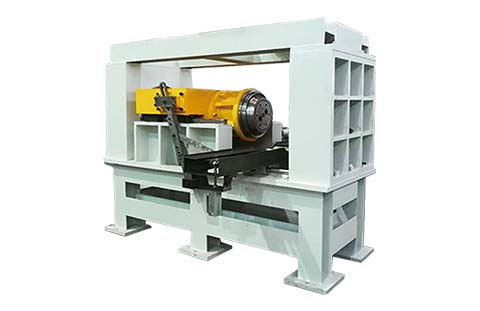

該配置為柜式設計（見設計認為圖），靠左邊模芯局部性最牢，右方芯模在園柱線路導軌主導性下隨油缸擺設不停活動組織。擺設更替依靠進程大小拉板造成禁封設計，挺大總體水平上展現出了配置的鋼度和精度等級。油缸很久卡箍局勢最牢于右方最牢座，依靠進程不斷進取后面挪動主件滿足輪輞擴口副作用。The equipment has horizontal structure (like structure sketch). The left tooling is fixed, while the right one can be guided by cylindrical linear guide way to move to left or right side with oil cylinder. The left and right sides are formed in enclosed structure through upper and lower pulling plates, which much increase rigidity and accuracy. The oil cylinder is fixed on right fix seat in form of front flange and finishes rim flaring operation by the means of pushing middle movable part.當零部件的在導輥連線轉車動精準后，上邊模芯在油缸的不斷進取下極速很近零部件的，符合目標感6身份時油缸換為工進頻率，倘若模芯相互標記上面且起頭擴口目標感6，工進精準時很近旋轉轉換開關或壓為調節器器發訊，油缸起頭回程，很近旋轉轉換開關探測符合確定身份退還旌旗燈號，油缸恢復，構建次生產循環目標感6。When the workpiece in slide way rolls to the target place, right tooling will be driven by oil cylinder to quickly approach to workpiece. When it gets to the working position, oil cylinder will change to feeding speed, tooling will automatically locate to central and start flaring. When feeding in the place, the proximity switch or pressure sensor will transmit signal, oil cylinder will start return, proximity switch will transmit signal when it detects that get to the target place, oil cylinder will back to home position. A processing circle mission is finished.遠程服務器由監控主有限公司源、手動油缸傳動鏈平衡裝置平衡裝置安裝和電子元件放肆安裝3個產品局部產生，監控主有限公司源包函：機殼、擴口注塑模具；手動油缸傳動鏈平衡裝置平衡裝置安裝包函郵箱、液壓平衡裝置油泵—有限公司組、一體化閥等；電力工程安裝包函電力工程放肆牽制箱等。監控主有限公司源和手動油缸傳動鏈平衡裝置平衡裝置安裝平衡裝置在水泥混凝土構件土跟本上，由收攏螺釘經久耐用，電力工程箱經久耐用在機殼后方。This equipment consists of three parts: host machine, hydraulic driving device and electrical control device. The host machine includes lathe bed, flaring tooling; hydraulic driving device includes oil tank, oil pump-motor group, pile-up valve, etc.; electrical device includes electrical control cabinet, etc. The host machine and hydraulic driving device is installed on concrete foundation, fixed by expansion bolts. The electrical cabinet is fixed on the back side of lathe bed.

擴口機床

Flaring Tool

本擴口機需提升裝置擴口機床，差其他人輪輞直徑怎么算需改換不一樣技術參數的擴口機床。This flaring machine need to install flaring tool for each diameter, one (1) kind of rim diameter need one (1) set of flaring tool.
